Frame Relay Gns3

Posted onby admin

R0(config)#int s0/0
R0(config-if)#no shutdown
R0(config-if)#enc
R0(config-if)#encapsulation frame-relay
R0(config-if)#int s0/0.1 point
R0(config-if)#int s0/0.1 point-to-point
R0(config-subif)#ip add 192.168.100.1 255.255.255.252
R0(config-subif)#frame-relay interface-dlci 101
R0(config-fr-dlci)#int s0/0.2 point-to-point
R0(config-subif)#ip add 192.168.100.5 255.255.255.252
R0(config-subif)#frame-relay interface-dlci 102
R0(config-fr-dlci)#end
R1(config)#int s0/1
R1(config-if)#no shut
R1(config-if)#encapsulation frame-relay
R1(config-if)#int s0/1.1 point-to-point
R1(config-subif)#ip add 192.168.100.2 255.255.255.252
R1(config-subif)#frame-relay interface-dlci 202
R1(config-fr-dlci)#end

SubinterfaceMultipointConfiguration

Gns3 Frame Relay

R1#ping 192.168.100.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.100.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 4/8/20 ms
R2(config)#int s0/2
R2(config-if)#no shut
R2(config-if)#encapsulation frame-relay
R2(config-if)#int s0/2.1 point-to-point
R2(config-subif)#ip add 192.168.100.6 255.255.255.252
R2(config-subif)#do sh fram pvcR2(config-subif)#frame-relay interface-dlci 203
R2(config-fr-dlci)#end
R2#
*Mar 1 00:14:16.287: %SYS-5-CONFIG_I: Configured from console by console
R2#sh frame-relay pvcR2#ping 192.168.100.5
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.100.5, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 4/7/12 ms
R2#sh cdp nei
R2#sh frame-relay pvcR2#ping 192.168.100.5
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.100.5, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 4/8/16 ms
R2#
Ref: http://www.blindhog.net/tutorials/gns3-frame-relay-lab/gns3-frame-relay-lab.html
http://reecon.wordpress.com/2010/05/14/configuring-frame-relay-in-point-to-point-topology-on-cisco-ios/
http://reecon.wordpress.com/2010/05/14/configuring-frame-relay-in-multipoint-topology-on-cisco-ios/
http://networklessons.com/frame-relay/how-to-configure-frame-relay-point-to-multipoint/

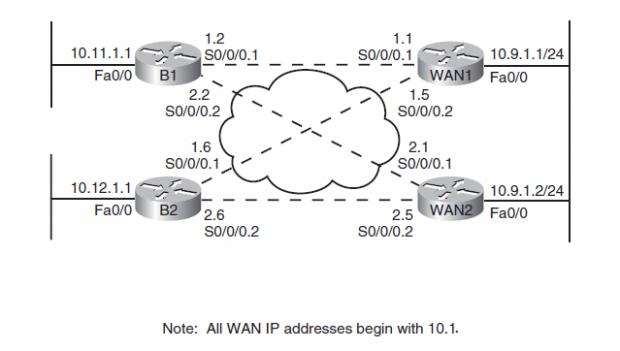

Frame Relay Gns3 Point-to-point

Frame Relay Gns3

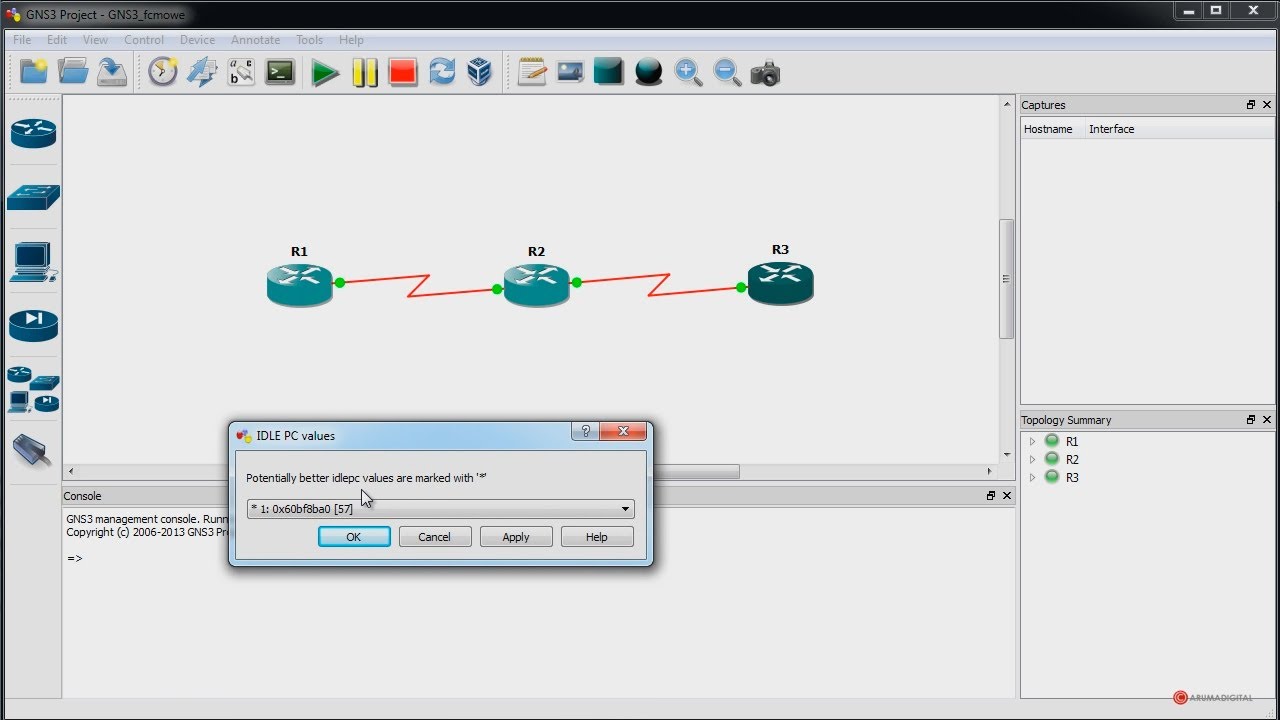

Create Frame Relay In Gns3

For today, I prepared a presentation about how you can create a Frame-Relay hub and spoke topology in GNS3, save and use it whenever you need it. This tutorial does not include the configuration of the devices which form Frame-Relay hub and spoke, but only the GNS3 lab topology. The thing is I just created a basic EIGRP over frame relay in GNS3 and as soon as I finished entering the network command, the neighbor relationship is established. I know on OSPF, if you physical int, OSPF will not form neighbor relationship because the network is default to non-broadcast and so you have to issue the neighbor statement.
